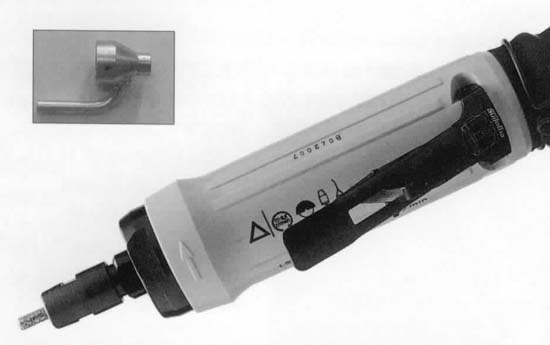

High Speed Pneumatic Routers

Ref: AAO 17517 27S & AAOO 17511 17S

HSrouter02

These tools are ideal for cutting radii, apertures and irregular shapes in GRP mouldings.
They are also very suitable for trimming offcuts from irregular mouldings, where they may be used either freehand or fitted with a dust collector hood/guide which will follow a template or jig to give accurate reproducibility of cut.
Both models are fitted with a rear exhaust which carries the used air away behind the operator.
Supplied complete with 15 feet of airhose and 4.8mm diamond burr.

                                     SPECIFICATIONS

AAOO 17517 27S


Free speed ...............................................................25000rpm
Air consumption........................................16 litre/sec 34 CFM
Air pressure...................................................80psi (5.7kg/cm²)
Weight ...................................................................0.7kg (25oz)
Overall length ................................................................205mm
Collet size...........................................................................6mm
HP.........................................................................................0.55
Maximum burr diameter..................................................16mm
Part number for dust collector/hood.................................4353

AAOO 17511 17S

Free speed ...............................................................38000rpm
Air consumption........................................10 litre/sec 21 CFM
Air pressure...................................................80psi (5.7kg/cm²)
Weight ....................................................................0.4kg (14oz)
Overall length .................................................................170mm
Collet size............................................................................6mm
HP.........................................................................................0.34
Maximum burr diameter....................................................9mm
Part number for dust collector/hood.................................4079

To obtain more information about these products please visit the Information page or click HERE
