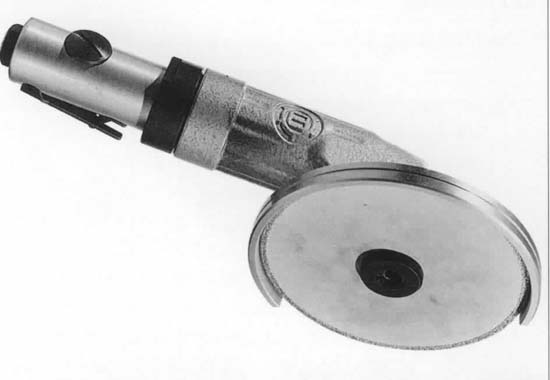

4” Heavy Duty Diamond Wheel Trimmer

Ref: AAO 16077

The most powerful of our range of Diamond Wheel Trimmers, this unit will handle quickly and easily all heavy cutting and trimming jobs up to its maximum depth of cut.
The extra power of this trimmer is obtained by a higher air consumption and the compressed air supply must be capable of producing 25-30cfm per minute for maximum cutting speed although it will run on 15cfm at reduced power.
An air line filter and oiler must be used to ensure trouble-free running.
Our dust extractor unit will fit this trimmer or the dust extractor head only may be supplied to connect to existing dust extractor systems.
Supplied complete with 4” dia. x Me” (101mm dia. x 1.55mm) thick diamond tipped cutting disc, 20 feet (4.5 metres) of MT (12.5mm) bore air hose and tools.

                                    Specification
Speed ..................................................................12500rpm
Air consumption ..................................14.2 litre/sec 30cfm
Weight ........................................................3.75lbs   (1.7kg)
Air pressure.................................. 80psi (5.6kg per sq cm) Maximum depth of cut.......................................7/8” (22mm)

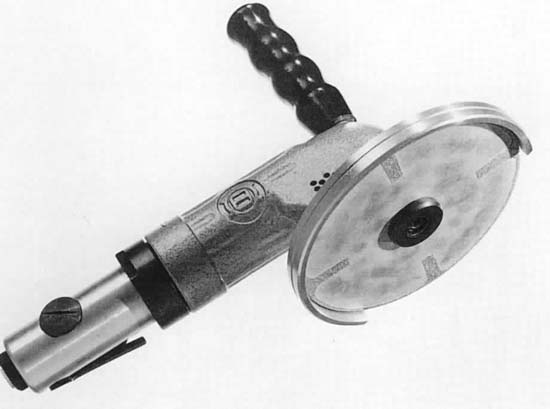

5” Heavy Duty Trimmer

Ref: AAO 16079

This new heavy duty air operated trimmer has been introduced for trimming the thicker GRP mouldings up to 1 3/8".
A side handle ensures good tool balance, and a safety lever throttle is fitted.
The side spoked diamond saw blade ensures adequate clearance when cutting thicker laminates, and assists in cutting curves without jamming.
A dust extractor head is available similar to those on our other trimmers.
Supplied with 5” x 1/16” (127mm x 1.55mm) spoked diamond blade, 15 feet (4.5 metres) of 1/2” (12.5mm) bore air hose and tools.

                                    Specification
Speed ..................................................................12500rpm
Air consumption ..................................14.2 litre/sec 30cfm
Weight ......................................................3.85lbs   (1.74kg)
Air pressure............................................                    . 80psi Maximum depth of cut.................................1 3/8” (3.49cm)

Conversion Kit for Makita Grinder

Ref: AAO 16080

The conversion kit consists of a lightweight aluminium guard, an arbor and a 4” diameter diamond wheel with which moulders can convert a Makita 9501B grinder to a diamond wheel trimmer. Care must be taken to ensure that the motor is regularly blown clear of dust.
